IMPCO LPG PROPANE CARBURETOR MIXER CA100 CA100-194

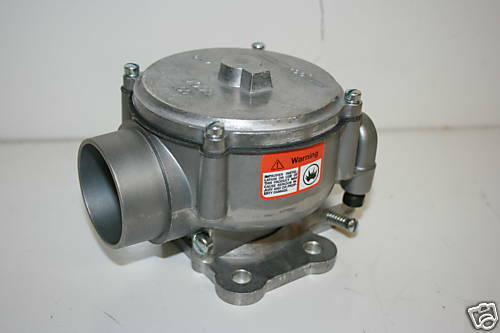

(PICTURE IS OF EXACT MIXER THAT YOU WILL RECEIVE)

  FREE SHIPPING ON THIS PRODUCT ANYWHERE IN THE 48 STATES.

SHIPPING DISCOUNTS AVAILABLE TO ALL OTHER LOCATIONS WORLDWIDE INCLUDING HAWAII AND ALASKA...PLEASE CONTACT US FOR DETAILS.

                                           TECHINCAL DESCRIPTION

          THE MODEL 100 SERIES IS A SINGLE DIAPHRAGM AIR-GAS VALVE CARBURETOR/MIXER.  IT OFFERS A 90-DEGREE AIR INLET TO PROVIDE LOW OVERHEAD CLEARANCE, AND IS AVAILABLE WITH SEVERAL AIR HORN AND THROTTLE BODY OPTIONS.  THIS UNIT IS AVAILABLE FOR LPG AND VARIOUS NATURAL GAS APPLICATIONS.  IT HAS BEEN SUCESSFULLY USED FOR OTHER HYDROCARBON-BASED VAPOR FUEL AS LOW AS 500 BTU.  THE MODEL 100 IS ALSO AVAILABLE FOR FEEDBACK APPLICATIONS WITH THE 'FB' DESIGNATION.

THE 100 MIXER PROVIDES A CONVENIENT 1/8 NPT BALANCE PORT AND TWO SEPARATE AIR VALVE VACUUM PORTS.  ADDITIONAL LOW SPEED, IDLE MIXTURE CONTROL CAN BE OBTAINED TO LEAN AIR-FUEL MIXTURES THROUGH THE USE OF OPTIONAL SHIMS.

                                     TECHNICAL SPECIFICATIONS

FUEL.................................................TYPE NATURAL GAS,     DIGESTER GAS

AIR FLOW CAPACITY....................93 L/s (197cfm)@2.0 in Hg MANIFOLD DEPRESSION

HORSEPOWER RATING...................91.7 kW(123 hp)@2.0 in Hg MANIFOLD DEPRESSION

PORT SIZE..........................................1/2 NPT

MATERIALS:

BODY...................................................ALUMINUM

DIAPHRAGM.......................................HYDRIN OR SILICONE

DIAPHRAGM........................................COVER ALUMINUM

PLEASE SEE FOLLOWING DESIGN DETAILS FOR SPECIFIC PRODUCT SPECS:

• ITEM IS A SINGLE DIAPHRAGM AIR-GAS VALVE CARBURETOR WITH MIXER (CA100M-3)
• THROTTLE BODY:  N/A
• SAE FLANGE:  N/A
• [A]   CENTER TO  CENTER BOLT SPACING: N/A
• [B]    BORE:   N/A
• [C]    MIXER AIR HORN DIA.: 25.4mm (2.063")
• [D]    OVERALL WIDTH:  131mm (5.156")
• [E]     NPT INLET:  1/2"
• [F]     OVERALL HEIGHT:  N/A
• [G]     THROTTLE BODY HEIGHT:  N/A
• [H]     THROTTLE SHAFT DIA.:  N/A
•  [I]      FLANGE TO CENTER OF AIR HORN:  N/A
