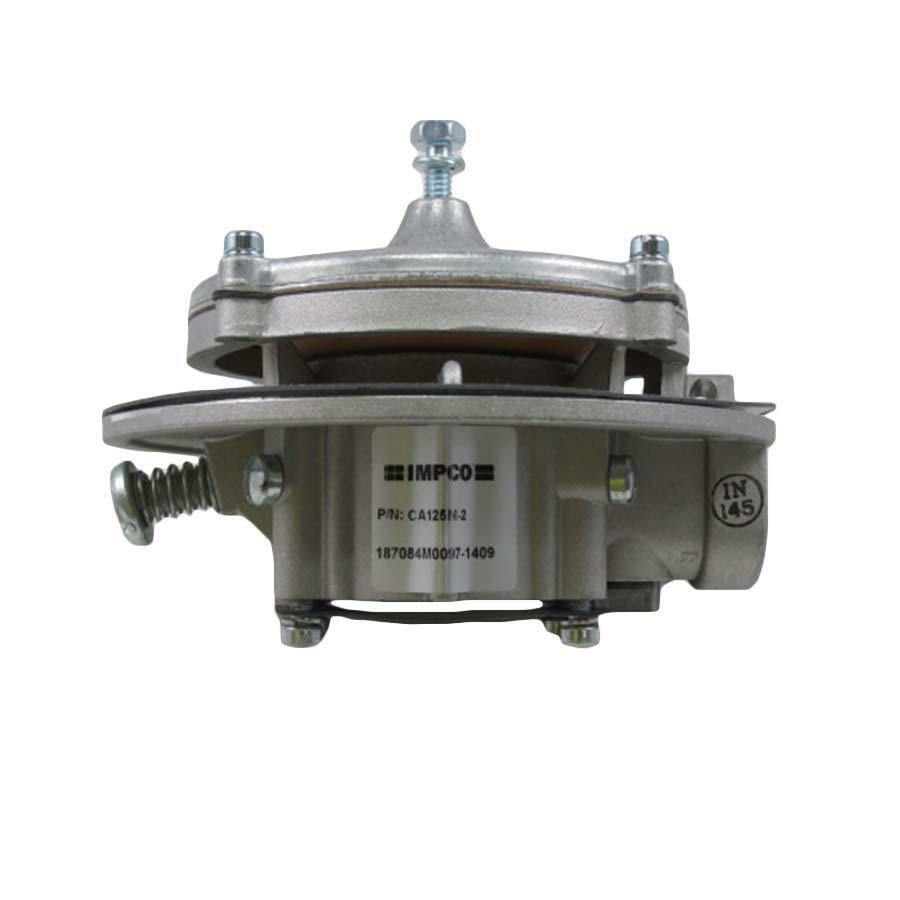

IMPCO LPG PROPANE CARBURETOR MIXER CA125 CA125M

IMPCO LPG PROPANE CARBURETOR MIXER CA125 CA125M

$270.00

Shipping calculated at checkout.

(PICTURES SHOWN OF THIS PRODUCT ARE ONLY FOR THE PURPOSE OF SHOWING THE BASIC DESIGN OF THIS UNIT)

FREE SHIPPING ON THIS PRODUCT ANYWHERE IN THE 48 STATES.

SHIPPING DISCOUNTS AVAILABLE TO ALL OTHER LOCATIONS WORLDWIDE INCLUDING HAWAII AND ALASKA...



                                              TECHINCAL DESCRIPTION



          THE MODEL 125 CARBURETOR IS A SINGLE-DIAPHRAGM AIR VALVE CARBURETOR/MIXER.  IT OFFERS A DOWN DRAFT AIR INLET THAT CAN BE USED FOR REMOTE AIR FILTRATION OR OPEN-ELEMENT TYPE AIR FILTERS.  THIS UNIT IS ALSO AVAILABLE FOR LPG AND NATURAL GAS APPLICATIONS.  IT HAS BEEN SUCCESSFULLY  USED FOR OTHER HYDROCARBON-BASED VAPOR FUELS AS LOW AS 500 BTU.

         THE MODEL 125 IS ALSO AVAILABLE FOR FEEDBACK APPLICATIONS WITH THE 'FB' DESIGNATION.  THESE FB MIXERS ARE AVAILABLE IN TAMPER RESISTANT CONFIGURATION, INDICATED BY THE SUFFIX :-TR" ON THE PART NUMBER.

           TWO SEPARATE AIR VALVE VACUUM SUPPLIES ARE AVAILABLE WITH THIS MIXER.   ADDITIONAL LOW SPEED MIXTURE CONTROL CAN BE OBTAINED TO LEAN AIR-FUEL MIXTURES WITH OPTIONAL SHIMS.  CHECK THE ACCESSORIES SECTION FOR MORE INFORMATION.  ALL 125DG SERIES MIXERS REDUCE AIRFLOW BY 30%



                                     TECHNICAL SPECIFICATIONS



FUEL.................................................NATURAL GAS AND LP-GAS

AIR FLOW CAPACITY.....................235 cfm @ 2.0 in  MANIGLOLD  DEPRESSION

HORSEPOWER RATING....................146 hp @ 2.0 in Hg MANIFOLD DEPRESSION

PORT SIZE..........................................1/2 NPT

MATERIALS:

BODY...................................................ALUMINUM

DIAPHRAGM.......................................HYDRIN OR SILICONE

DIAPHRAGM COVER......................... ALUMINUM

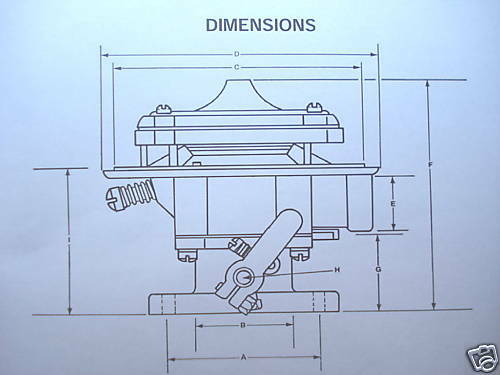

PLEASE SEE FOLLOWING DESIGN DETAILS FOR SPECIFIC PRODUCT SPECS:

  • ITEM IS A  MIXER ONLY
  • THROTTLE BODY:  N/A
  • SAE FLANGE:  1.25"X1.50"
  • [A]   CENTER TO  CENTER BOLT SPACING: N/A
  • [B]    BORE:   N/A
  • [C]    MIXER AIR HORN DIA.:   130mm (5.125")
  • [D]    OVERALL WIDTH:  140mm (5.500")
  • [E]     NPT INLET:  1/2"
  • [F]     OVERALL HEIGHT:  N/A
  • [G]     THROTTLE BODY HEIGHT:  N/A
  • [H]     THROTTLE SHAFT DIA.:  N/A
  •  [I]      FLANGE TO CENTER OF AIR HORN:  N/A
