IMPCO LPG PROPANE CARBURETOR MIXER CA210 210M-2-2

(PICTURES SHOWN OF THIS PRODUCT ARE ONLY FOR THE PURPOSE OF SHOWING THE BASIC DESIGN OF THIS UNIT)

FREE SHIPPING ON THIS PRODUCT ANYWHERE IN THE 48 STATES.

SHIPPING DISCOUNTS AVAILABLE TO ALL OTHER LOCATIONS WORLDWIDE INCLUDING HAWAII AND ALASKA...PLEASE CONTACT US FOR DETAILS.

                                  TECHINCAL DESCRIPTION

          THE IMPCO MODEL 210 CAN BE USED WITH METHANE AND PROPANE BASED FUELS.  ALL MIXERS AND COMPLETE CARBURETORS USE A STANDARD AIR-GAS METERING VALVE THAT PROVIDES ADEQUATE FUEL MIXTURE RANGE WITH THE APPROPRIATE POSITIVE (NATURAL GAS ) OR NEGATIVE (PROPANE) VAPORIZER/REGULATOR.

        THE 210 SERIES CARBURETOR/MIXER IS DESIGNED PRIMARILY FOR ONE AND TWO CYLINDER ENGINES WHERE SEVERE INTAKE MANIFOLD PRESSURE PULSATIONS ARE PRESENT.  HOWEVER, ITS USE IS NOT LIMITED TO THESE APPLICATIONS.  IMPROVED MIXTURE CONTROL AND AIR-GAS VALVE DURABILITY CAN ALSO BENEFIT OTHER APPLICATIONS IN TUNED INTAKE SYSTEMS WHERE RESONANT PRESSURE CHANGES COULD ADVERSELY AFFECT A STANDARD 200/225 SERIES ASSEMBLY.

          IT IS POSSIBLE TO USE OTHER AIR-GAS METERING VALVES AND BODY ASSEMBLIES FROM THE 200/225 SERIES RETAINING THE ORIGINAL SPACER.  PLEASE NOTE THAT THE DIAPHRAGM IS DIFFERENT FROM THE STANDARD 200/225 SERIES AND MAY HAVE TO BE ORDERED AS A SEPARATE COMPONENT PART.

                              TECHNICAL SPECIFICATIONS

FUEL TYPE...........................................METHANE/PROPANE (550-2500 BTU)

MAXIMUM FUEL INLET.....................8.0 IN H20

MAXIMUM BOOST PRESSURE..........5.0 psi

AIR FLOW CAPACITY..........................345 cfm @ 2.0 in hG MANIFOLD (DERATE 15% FOR METHANE)

HORSEPOWER.......................................215hp @ 2,500 BTU PER CUBIC FEET

OPERATING TEMPERATURE................-40 DEGREE C TO 120 DEGREE C (-40 DEGREE F TO 250 DEGREE F)

MATERIALS:

BODY.........................................................ALUMINUM

DIAPHRAGM.............................................HYDRIN (STANDARD), SILICONE (OPTIONAL)

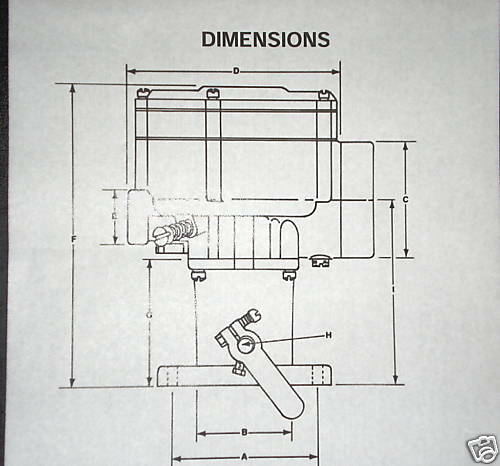

PLEASE SEE FOLLOWING DESIGN DETAILS FOR SPECIFIC PRODUCT SPECS:

• ITEM IS  MIXER ONLY
• THROTTLE BODY:  N/A
• SAE FLANGE:  N/A
• [A]   CENTER TO  CENTER BOLT SPACING:  N/A
• [B]    BORE:   N/A
• [C]    MIXER AIR HORN DIA.:  77.8mm (3.063")
• [D]    OVERALL WIDTH:  165mm (6.500")
• [E]     NPT INLET:  3/4"
• [F]     OVERALL HEIGHT:  N/A
• [G]     THROTTLE BODY HEIGHT:  N/A
• [H]     THROTTLE SHAFT DIA.:  N/A
•  [I]      FLANGE TO CENTER OF AIR HORN:  N/A
