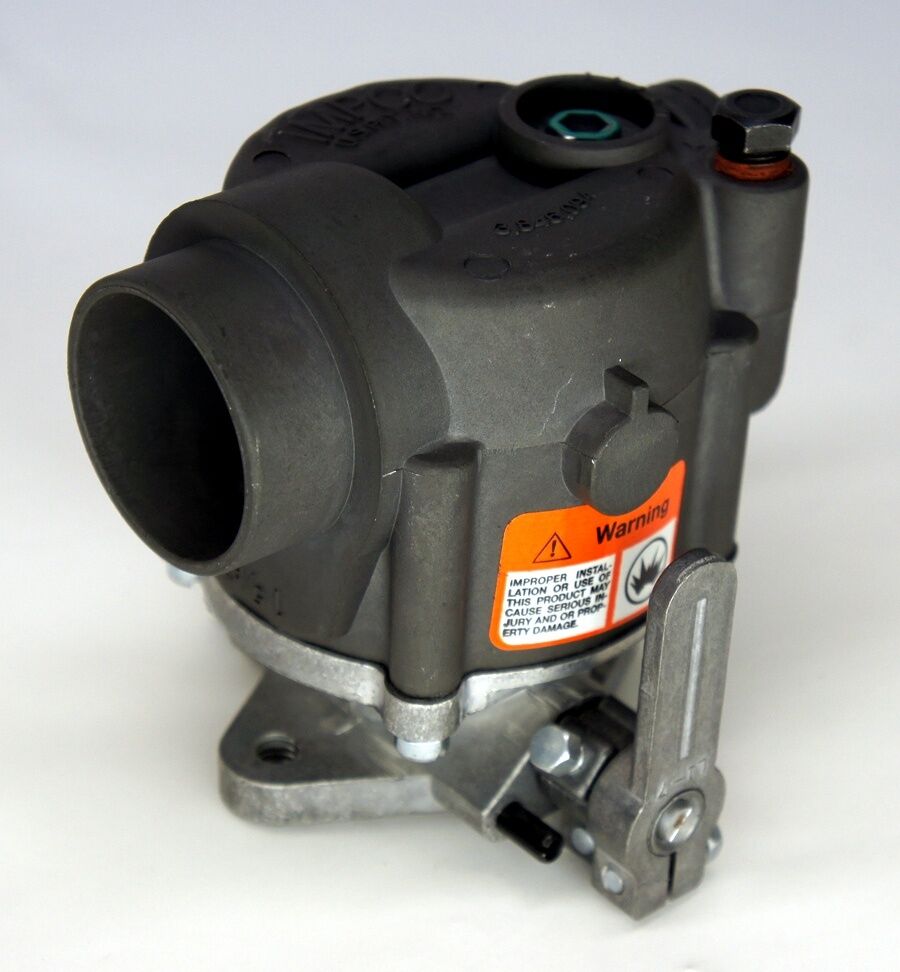

IMPCO LPG PROPANE CARBURETOR MIXER CA50 CA55 CA55-20

IMPCO LPG PROPANE CARBURETOR MIXER CA50 CA55 CA55-20

$385.00

Shipping calculated at checkout.

(PICTURES SHOWN OF THIS PRODUCT ARE ONLY FOR THE PURPOSE OF SHOWING THE BASIC DESIGN OF THIS UNIT)

FREE SHIPPING ON THIS PRODUCT ANYWHERE IN THE 48 STATES.

SHIPPING DISCOUNTS AVAILABLE TO ALL OTHER LOCATIONS WORLDWIDE INCLUDING HAWAII AND ALASKA...PLEASE CONTACT US FOR DETAILS.

                                            TECHNICAL DESCRIPTION

   THE STANDARD MODEL CAN BE MOUNTED IN EITHER AN UPDRAFT, DOWNDRAFT, OR SIDEDRAFT ORIENTATION, SUPPLYING EITHER LPG OR NATURAL GAS TO ENGINES FROM 1 TO 52 kW (1.5 to 70hp).  THE MAXIMUM FLOW RATE IS 54.2 L/s (115cfm).   VARIOUS SAE FLANGES AND AIR HORN SIZES ARE AVALABLE.

                                           TECHNICAL SPECIFICATIONS

  • FUEL.................................................LPG OR NATURAL GAS
  • FLOW................................................54.2 L/s (115 to cfm)
  • HORSEPOWER RATING.....................1 to 52kW (1.5 to 70 hp)

PLEASE REFER TO THE FOLLOWING DESIGN DETAILS FOR SPECIFIC PRODUCT SPECS:

  • CA55-20 IS MADE UP OF (QTY 1 MIXER PART NUMBER CA55M-20 & QTY 1 THROTTLE BODY PART NUMBER BT2-26)
  • SAE FLANGE:  1 "
  • NPT FUEL INLET:  3/8"

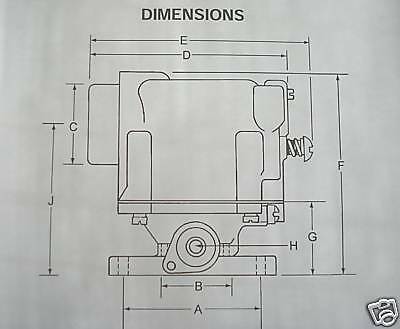

  • [A]   CTR. TO CTR. BOLT SPACING:  60.3mm (2.375")
  • [B]   BORE:  30.2mm (1.188")
  • [C]   AIR HORN DIA:  41.3mm (1.625")
  • [D]   OVERALL WIDTH:   96.9mm (3.813")
  • [E]    MAX WIDTH INCL. IDLE SCREW:  122mm (4.813")
  • [F]    OVERALL HEIGHT:  95.3mm (3.750")
  • [G]   THROTTLE. BODY HEIGHT:  33.4mm (1.313")
  • [H]   THROTTLE. SHAFT DIA.:  6.4"mm (2.50")
  • [J]     FLANGE TO CTR. OF AIR HORN:  71.5mm (2.813")



Most of the items in our ebay store are normal stock items and will ship the same day they are paid for...however...because we sell a lot of products outside of the ebay community...please understand that on a rare occasion an item may not be available for immediate shipment.  If time is critical...please contact us to be sure the item is in stock before bidding.

Be sure to add me to your favorites list!

Check out my other items!

Sign up for PayPal; the fast, easy, and secure way to pay online.

My Stores Logo

From collectibles to electronics, buy and sell all kinds of items on eBay Stores


Powered by eBay Turbo Lister
The free listing tool. List your items fast and easy and manage your active items.

We have thousands of parts in stock, if you do not see
the part you need!
Feel free to ask us about conversion kits for almost anything including trucks, cars, generators, tractors, boats, motorcycles, RVs etc. We can build a kit to convert almost any engine!
