IMPCO LPG PROPANE CARBURETOR MIXER CA50 CA55 CA55-598

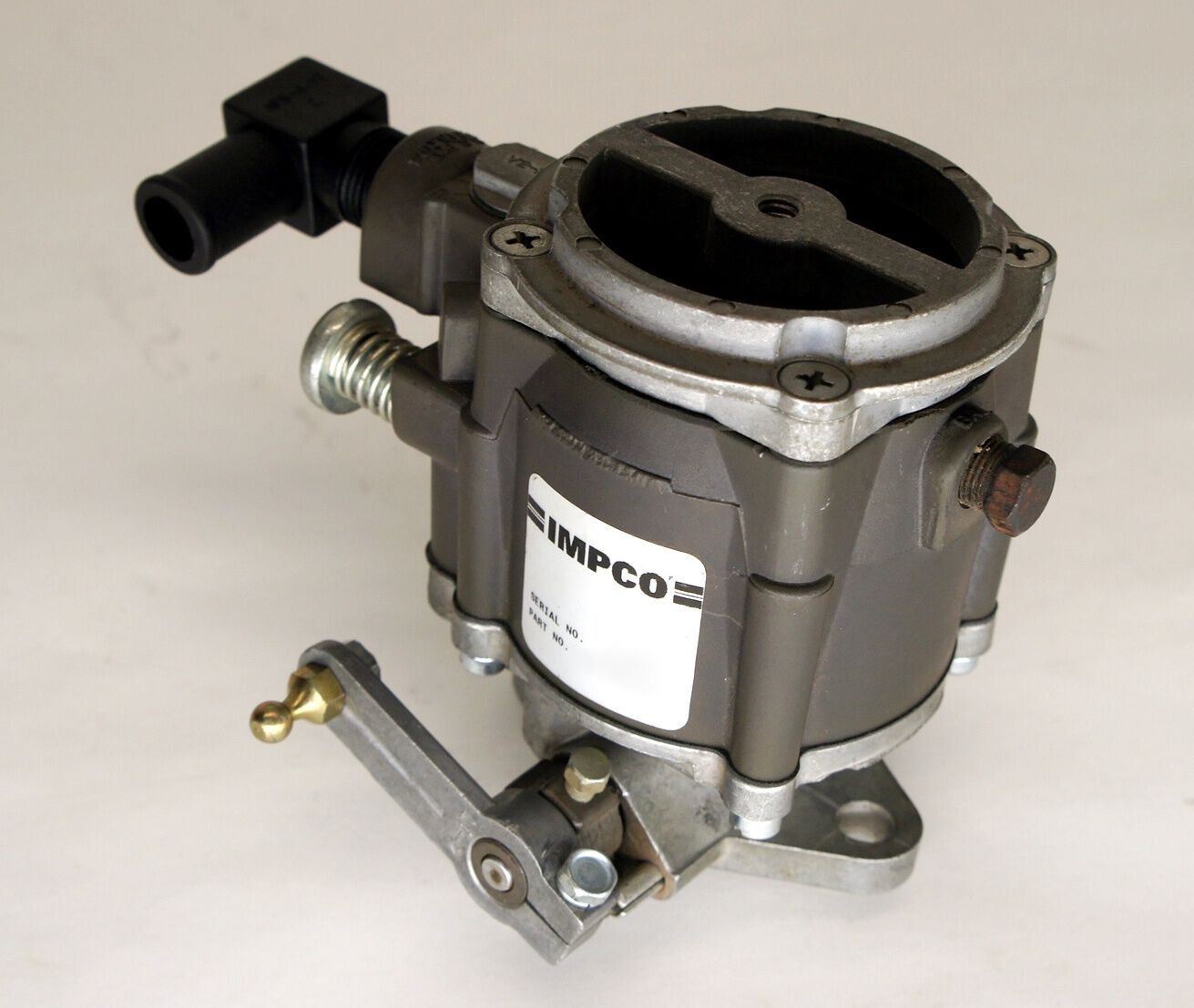

(PICTURES SHOWN OF THIS PRODUCT ARE ONLY FOR THE PURPOSE OF SHOWING THE BASIC DESIGN OF THIS UNIT)

FREE SHIPPING ON THIS PRODUCT ANYWHERE IN THE 48 STATES.

SHIPPING DISCOUNTS AVAILABLE TO ALL OTHER LOCATIONS WORLDWIDE INCLUDING HAWAII AND ALASKA...PLEASE CONTACT US FOR DETAILS.

                                         TECHNICAL DESCRIPTION

   THIS CA55 SERIES IS FOR USE WITH EITHER LPG OR NATURAL GAS ON ENGINES FROM 1 TO 56 kW (1.5 TO 75 hp) WITH A FLOW RATE OF 59.O L/s (125 cfm).  THIS FLOW-THROUGH DESIGN MAY BE MOUNTED IN EITHER DOWNDRAFT, UPDRAFT, OR SIDEDRAFT CONFIGURATION.  VARIOUS AIR HORNS AND FLANGE SIZES ARE AVAILABLE.

                                       TECHNICAL SPECIFICATIONS

• FUEL.........................................LPG or NATURAL GAS
• FLOW........................................59.0 L/s (125 cfm)
• HORSEPOWER RATING..........1 to 56 kW (1.5 to75hp)

PLEASE REFER TO THE FOLLOWING DESIGN DETAILS FOR SPECIFIC PRODUCT SPECS:

• ITEM IS CARBURETOR WITH MIXER CA55M-500
• THROTTLE BODY:  BT2-27-2
• SAE FLANGE:   1 1/4"
• AIR HORN ADAPT.:  A2-61
• [A]   CENTER TO CENTER BOLT SPACING:  68.3mm(2.688")
• [B]   BORE:  30.2mm (1.188")
• [C]   AIR HORN DIA.:  63.5mm (2.500")
• [D]   OVERALL WIDTH:  104.8mm (4.125")
• [E]    NPT FUEL INLET:  3/8"
• [F]    OVERALL HEIGHT:  103.2mm (4.063")
• [G]    THROTTLE BODY HEIGHT:  33.4mm (1.313")
• [H]    THROTTLE SHAFT DIA.:  6.4mm (2.50")
• [J]      FLANGE TO TOP OF MIXER:  87.3mm (3.438")
