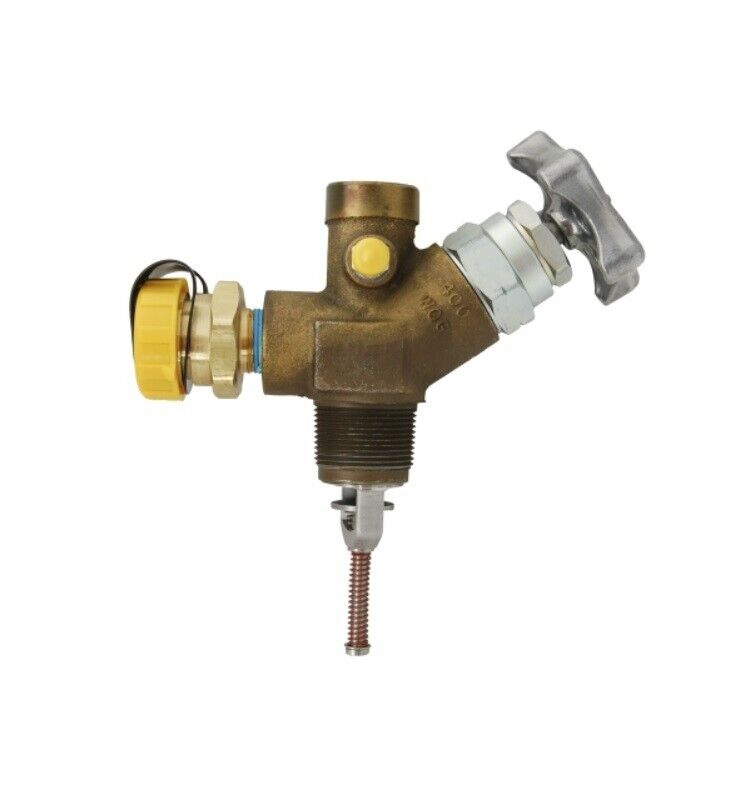

ME673DEX-6SP Multi-valve Multivalve 1-1/4" Male NPT Multipurpose 3/4" FPT LPG

Regular price $672.00

Shipping calculated at checkout.

Multipurpose Filler Bypass Return Valve for Dispensing Applications

APPLICATION:

Ideally suited for use as a high capacity combination double check fill and liquid bypass return line shut-off valve. These valves are equipped standard with an integrated excess flow feature that is internal to the tank protecting against tank separation. The preinstalled side mounted ME601-6 double check fill valve allows for safe low emissions container filling at a convenient right angle orientation. The top mount 3/4” FNPT port above integrated shut-off valve seat allows for maximum liquid bypass return flow rates without adding an external line shut-off valve.

NOTE: For proper operation and performance of the excess flow feature the manual shutoff must be completely open and back-seated.

• Plated ductile iron body with preinstalled MEH225 hydrostatic relief valve

• All stainless steel internal construction for maximum corrosion resistance

• V-cup PTFE packing stem seals

• Rated 400 PSI / WOG

• Preinstalled ME601-6 double check fill valve w/ cap

• FOR USE WITH LPG ONLY

TANK CONNECTION: 1-1/4" MALE NPT

FILL CONNECTION: 1-3/4" MALE ACME

BYPASS RETURN PORT: 3/4" FEMALE NPT

APPROXIMATE EXCESS FLOW CLOSING: LIQUID 58 GPM, VAPOR 27,000 SCFH

HYDROSTATIC RELIEF: MEH225
