PLEASE READ COMPLETE DESCRIPTION

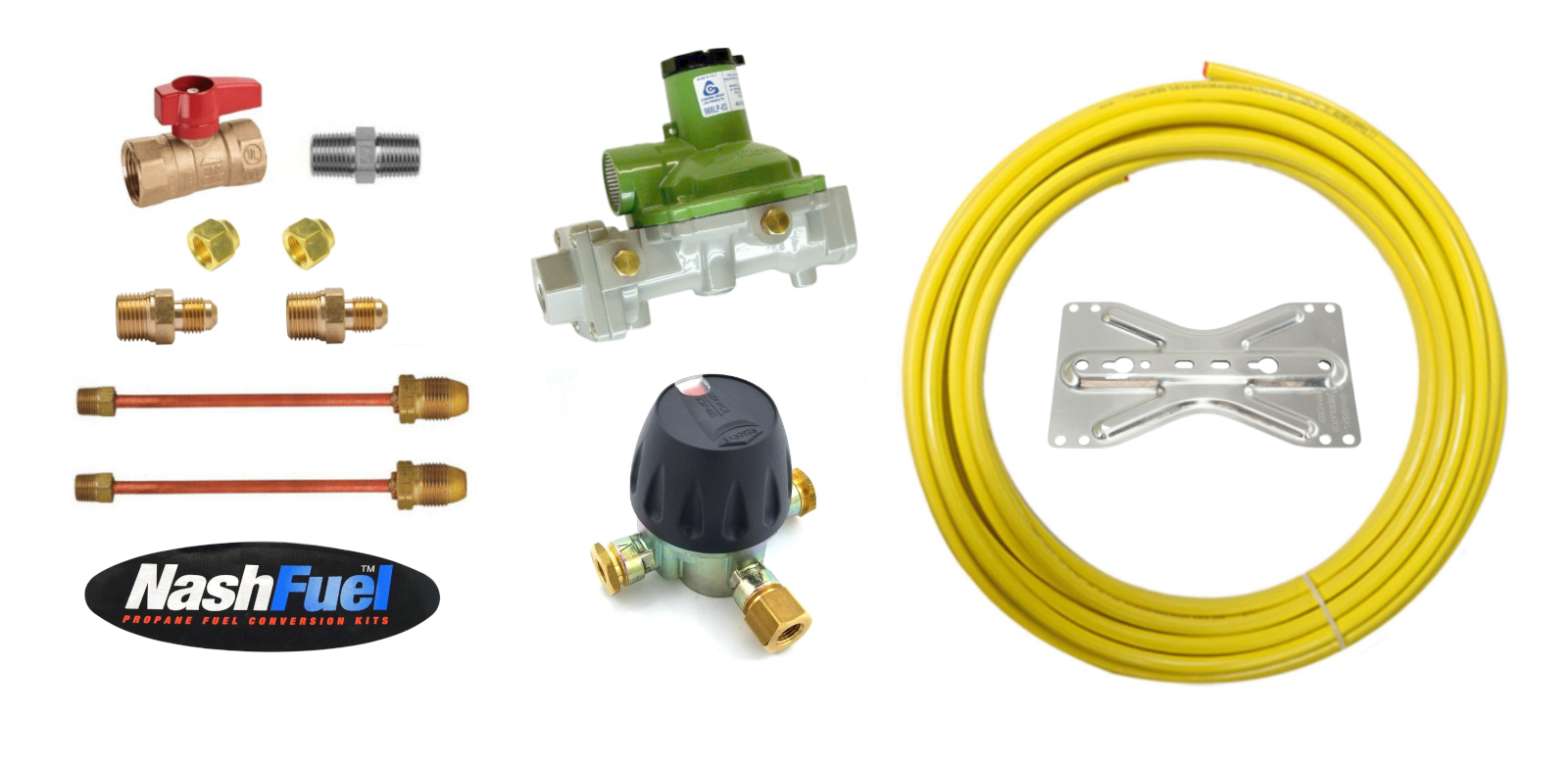

APPLICATION: The MEGR-175CS6 will be mounted between two stationary tanks with the included pigtails
This is an automatic changeover regulator, when one tank runs empty it will automatically switch to the full tank. From there 3/8" polyethylene coated copper line will run from the outlet of the MEGR-175CS6 at around 10psi to the inlet of the 988LP-03.
The 988LP-03 has an outlet pressure of 11"wc (adjustable) that will work with most home appliances.
A ball valve lockoff is also included to mount between the house and the 988LP-03.
KIT CONFIGURATION: STRAIGHT
COPPER COIL LENGTHS: 50FT OR 100FT
BTU capacity is based on the cut length of the copper line, see chart below
Check with your installer on codes relating to underground line and btu capacity you will need
Installer will cut to length and flare ends for the copper line.
10FT = 513K BTU
20FT = 352K BTU
30FT = 283K BTU
40FT = 242K BTU
50FT = 215K BTU
60FT = 194K BTU
70FT = 179K BTU
80FT = 166K BTU
90FT = 156K BTU
100FT = 147K BTU
FROM TANK (984HP-04)
MAX INPUT: 250 PSI
INPUT SIZE: 1/4" FEMALE NPT
OUTPUT: 10PSI
OUTPUT SIZE: 1/2" FEMALE NPT
TO SECOND STAGE REGULATOR (988LP-03)
MAX INPUT: 10 PSI
INPUT SIZE: 1/2" FEMALE NPT
OUTPUT: 11"WC
OUTPUT SIZE: 1/2" FEMALE NPT
NOTE: PIGTAIL WILL COME COILED
