Propane LPG Regulator Aftermarket Replacement for LP3250 Generac Style 0J5785 6000-1 006000-1

Aftermarket regulator replacement for the

Generac LP3250 6000-1 (0J5785)

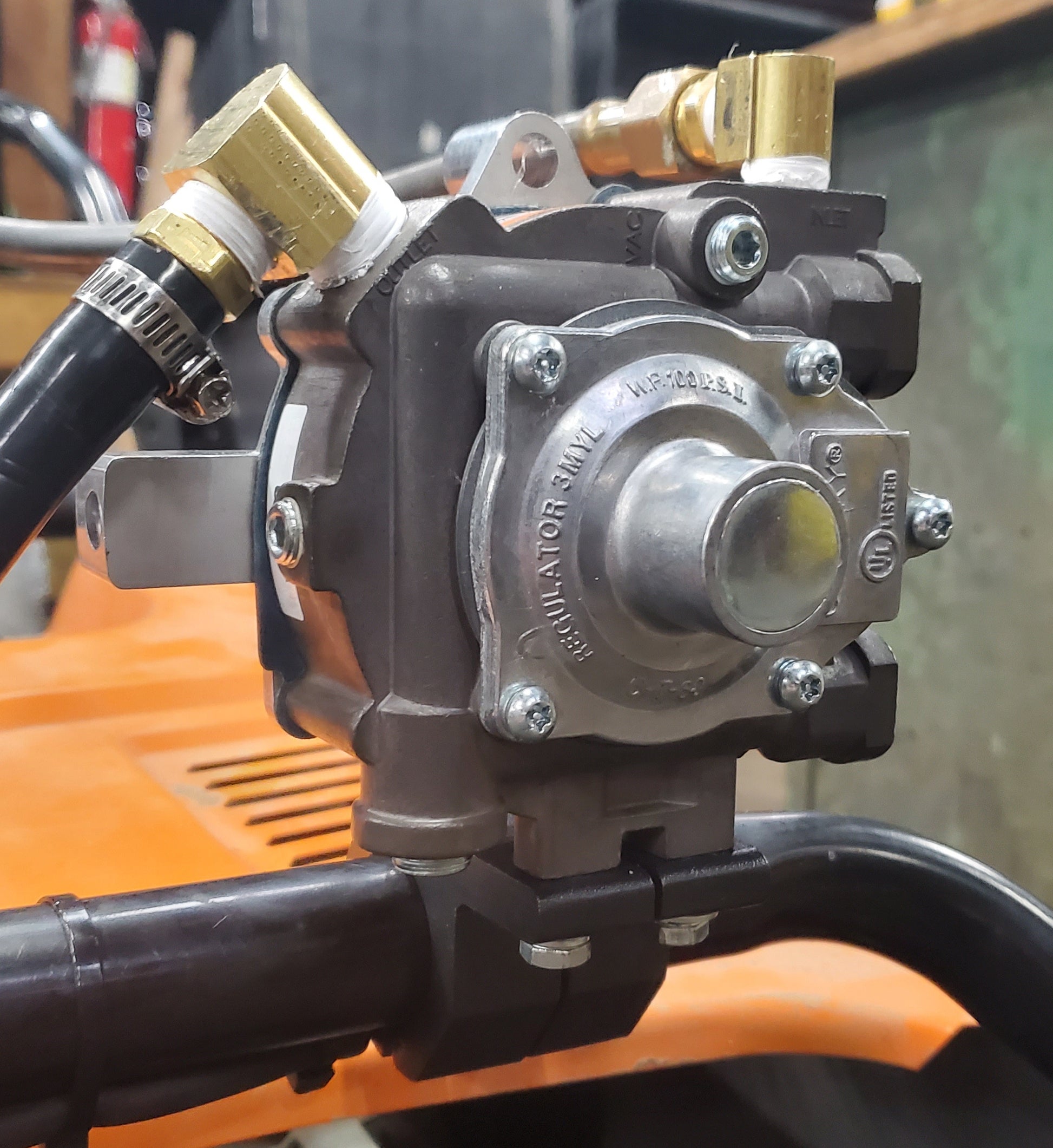

1. Kit comes with bar clamps, clamp the regulator to the frame as pictured

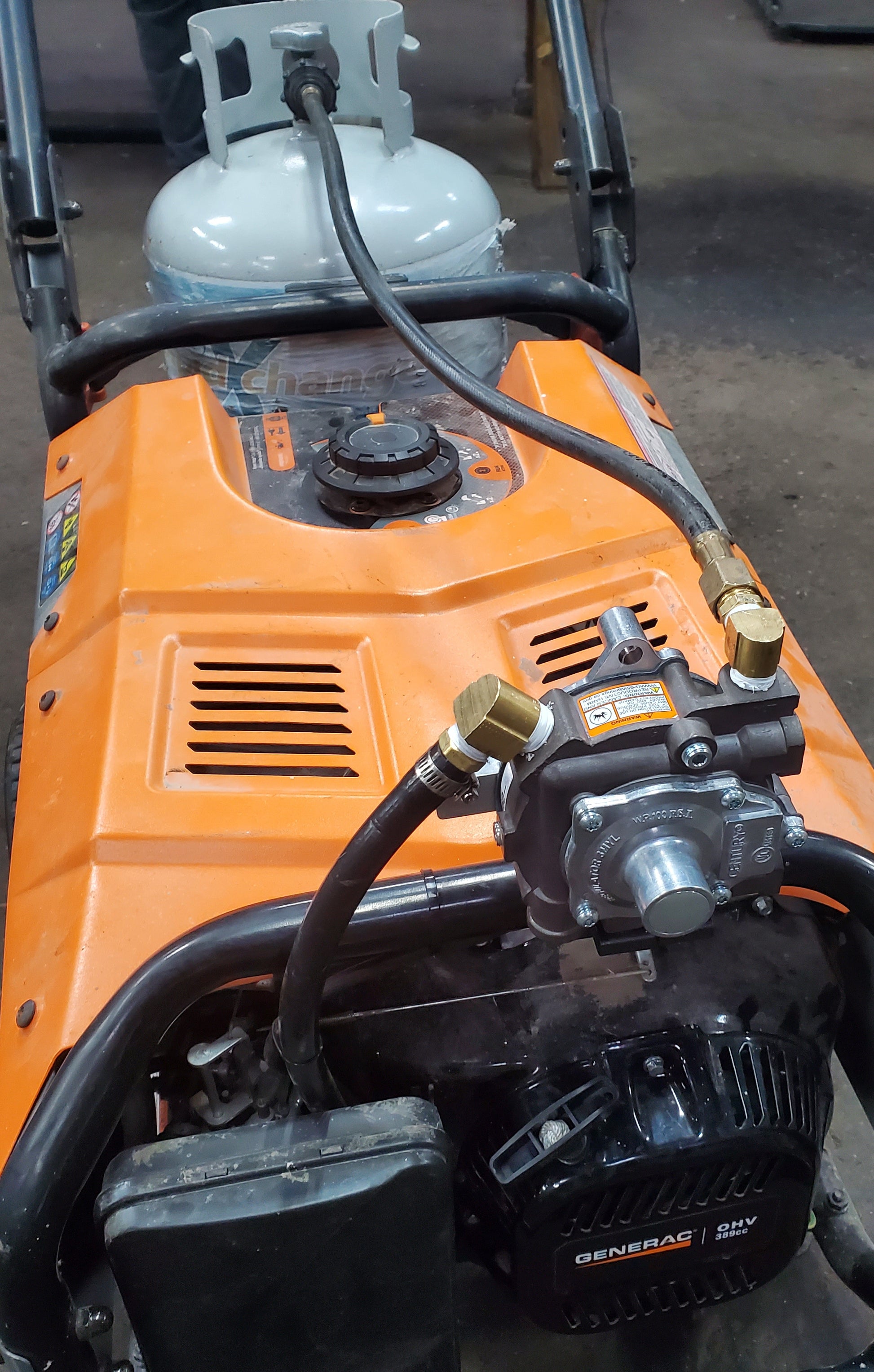

2. Run your high pressure line to the inlet of the regulator as pictured
3. Remove and re-route the line from the carburetor to the outlet of the regulator as pictured
4. Small vacuum line from the carb will need to be plugged

COMPLETE ASSEMBLY REQUIRED

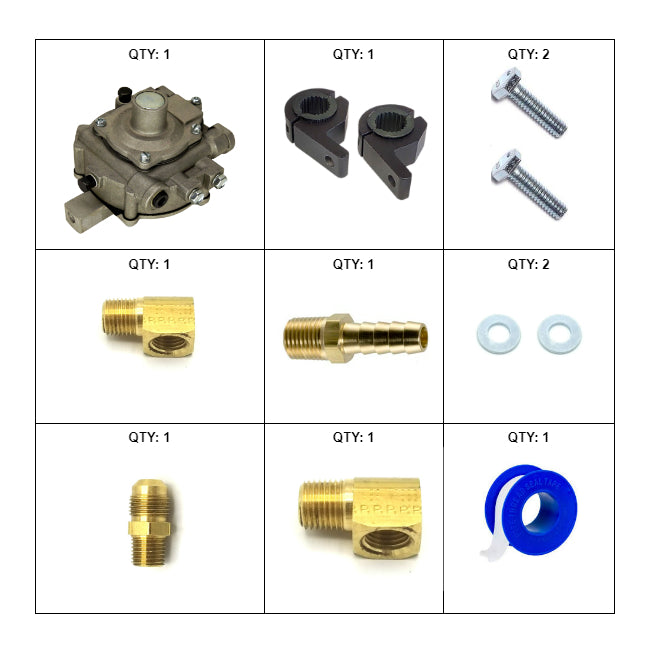

GENERATOR TANK AND OTHER PARTS NOT INCLUDED, ONLY PARTS INCLUDED IN LAST PICTURE

BRAND: AFTERMARKET

FEATURES: IDLE ADJUSTMENT, PUSH BUTTON PRIMER

FUEL TYPE: LPG LIQUID/VAPOR OR NATURAL GAS

INLET PRESSURE: MAXIMUM: 250 PSI (17.23 BAR)

MINIMUM INLET PRESSURE: 30 PSI (207 KPA)

OUTLET PRESSURE: -0.5” W.C. (-0.13 KPA)

HP/KW: 40HP (30KW) LPG VAPOR

OPERATING TEMPERATURE RANGE: -40°F TO +250°F (-40°C TO +121°C)

FREE SHIPPING TO THE 48 STATES

Feel free to ask us about conversion kits for almost anything including trucks, cars, generators, tractors, boats, motorcycles, RVs etc. We can build a kit to convert almost any engine!
