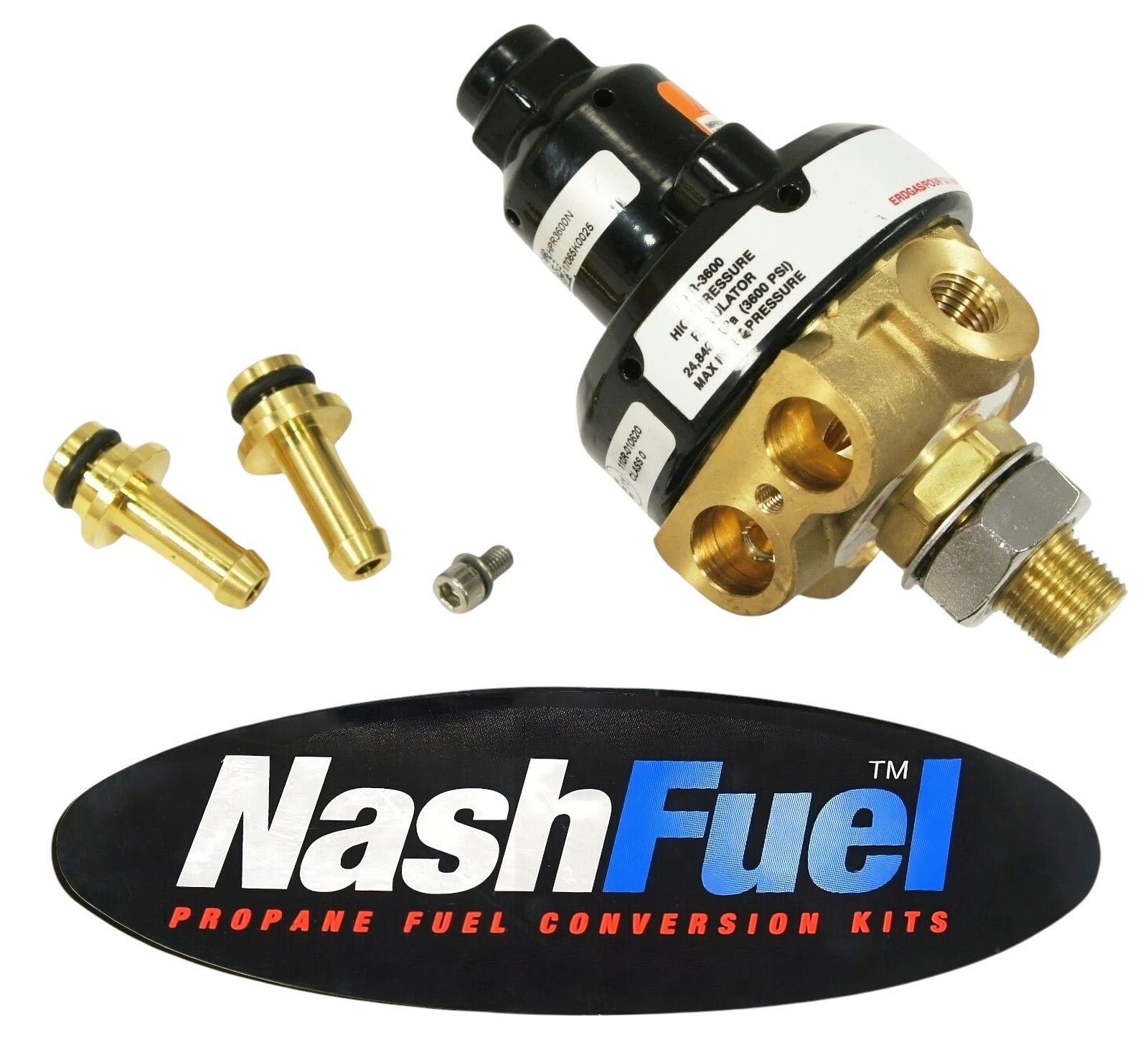

PART NUMBER: HPR-3600

APPLICATION: Vaporizer for many applications running CNG

INLET: 3/8" male NPT

OUTLET: 1/4" female NPT

COOLANT PORTS: 3/8" hose barb

The HPR-3600 is a single stage high pressure

regulator designed for high pressure CNG (compressed natural gas) systems. This regulator is engine coolant heated to prevent freezing and has dual outlet ports for universal installation flexibility.

The HPR is rated up to 24,800 kPa (3,600 psi) inlet and provides a regulated outlet pressure of 1,030 ± 140 kPa (150 ± 20 psi) which makes it compatible with the IMPCO “P” (positive) type regulators. It is also supplied with an external pressure relief valve which is calibrated to open if outlet pressure exceeds 2,760 kPa (400 psi). Regulatory approvals include UL and AGA/CGA.
