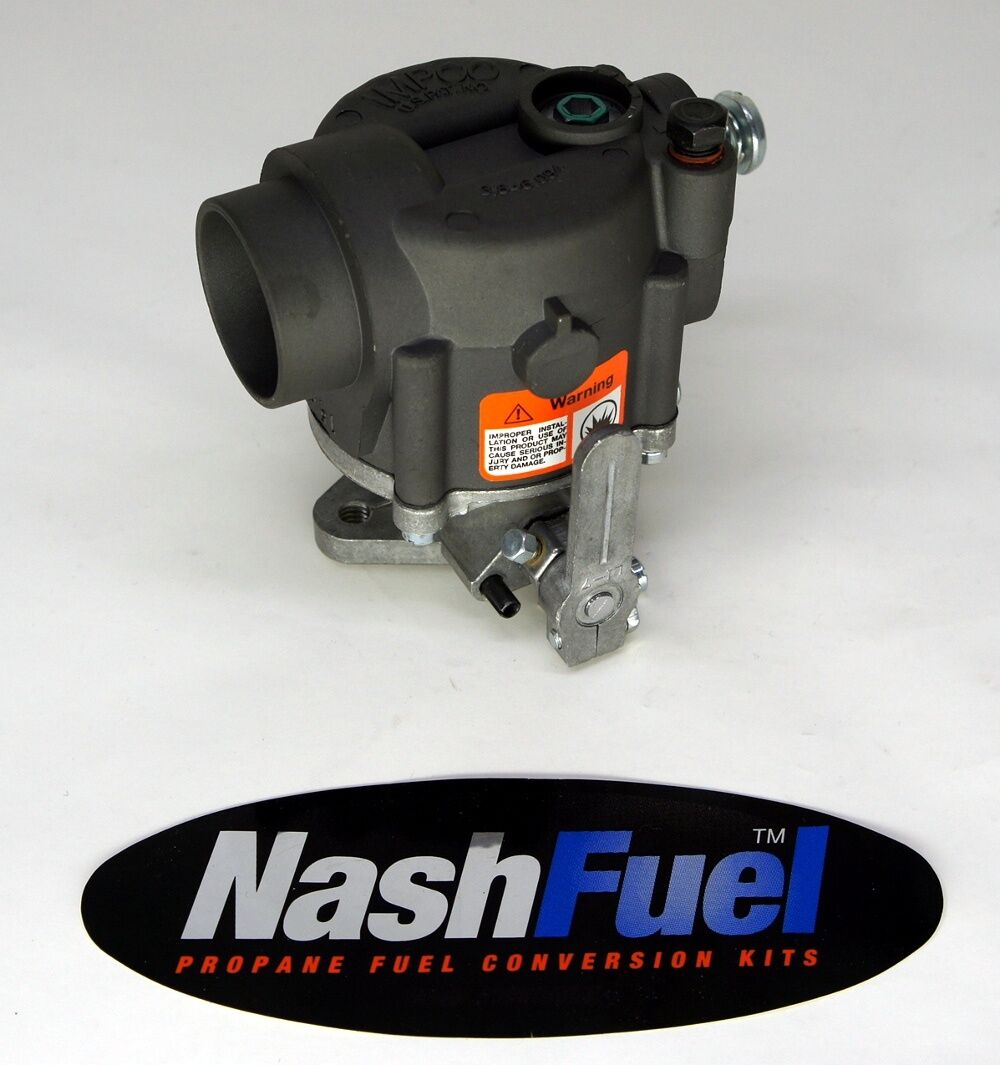

IMPCO LPG PROPANE CARBURETOR MIXER CA50 CA55 CA55-4

IMPCO LPG PROPANE CARBURETOR MIXER CA50 CA55 CA55-4

$271.00

Shipping calculated at checkout.

(PICTURES SHOWN OF THIS PRODUCT ARE ONLY FOR THE PURPOSE OF SHOWING THE BASIC DESIGN OF THIS UNIT)

FREE SHIPPING ON THIS PRODUCT ANYWHERE IN THE 48 STATES.

SHIPPING DISCOUNTS AVAILABLE TO ALL OTHER LOCATIONS WORLDWIDE INCLUDING HAWAII AND ALASKA...PLEASE CONTACT US FOR DETAILS.

                                           TECHNICAL DESCRIPTION

   THE STANDARD MODEL CAN BE MOUNTED IN EITHER AN UPDRAFT, DOWNDRAFT, OR SIDEDRAFT ORIENTATION, SUPPLYING EITHER LPG OR NATURAL GAS TO ENGINES FROM 1 TO 52 kW (1.5 to 70hp).  THE MAXIMUM FLOW RATE IS 54.2 L/s (115cfm).   VARIOUS SAE FLANGES AND AIR HORN SIZES ARE AVALABLE.

                                           TECHNICAL SPECIFICATIONS

  • FUEL.................................................LPG OR NATURAL GAS
  • FLOW................................................54.2 L/s (115 to cfm)
  • HORSEPOWER RATING.....................1 to 52kW (1.5 to 70 hp)

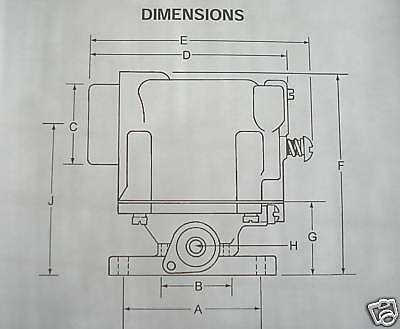

PLEASE REFER TO THE FOLLOWING DESIGN DETAILS FOR SPECIFIC PRODUCT SPECS:

  • CA55-4 IS MADE UP OF (QTY 1 MIXER PART NUMBER CA55M-2 & QTY 1 THROTTLE BODY PART NUMBER BT2-25)
  • SAE FLANGE:  3/4"
  • NPT FUEL INLET:  3/8"
  • [A]   CTR. TO CTR. BOLT SPACING:  57.2mm (2.250")
  • [B]   BORE:  27.0mm (1.063")
  • [C]   AIR HORN DIA:  41.3mm (1.625")
  • [D]   OVERALL WIDTH:   96.9mm (3.813")
  • [E]    MAX WIDTH INCL. IDLE SCREW:  122mm (4.813")
  • [F]    OVERALL HEIGHT:  95.3mm (3.750")
  • [G]   THROTTLE. BODY HEIGHT:  33.4mm (1.313")
  • [H]   THROTTLE. SHAFT DIA.:  6.4"mm (2.50")
  • [J]     FLANGE TO CTR. OF AIR HORN:  71.5mm (2.813")

 REPLACEMENT FOR

TY00591-14423-81

005911442381

800084623
